Goldilocks and the Three Grizzlies

We have seen that a simple timing system can add substantial value to U.S. stocks over the long term, and to a long-term market bubble and collapse, using the Nikkei as our proxy.

Both of these studies quite successfully applied timing systems to a single index only. In practice however, the real power of trend following systems is their ability to identify and ride many trends simultaneously. If U.S. stock markets are choppy, perhaps there is a nice trend underway in oil, Treasuries or international small-cap stocks. If so, the trend following system will find them and ride them to generate returns.

The arch enemies of trend following systems are flat sideways markets, as well as extended markets with big, fast reversals in direction. Sailors will understand this implicitly, as a sailor's greatest enemy is low winds, followed closely by blustery winds which constantly change direction. So long as there is a fairly constant breeze blowing in the same general direction, a sailor can set his sails and ride, with only minor regular adjustments. When the winds change direction, the sailor adjusts. Similarly, so long as markets spend a few months going in the same general direction, trend-following systems will ride along and capture profits. When they spend a few months moving in the opposite direction, or no general direction, trend followers will "tack" or "lower their sails" respectively as the market requires.

With this study we have set out to confound our trend following system by testing it against 3 of the most difficult market periods of the past 140 years:
  1. The Nasdaq tech bubble and subsequent crash
  2. The Nikkei property bubble and subsequent crash
  3. The 'Roaring 20s' stock market bubble and subsequent Great Depression
This is an especially interesting study because it provides for no 'escape valve' to earn returns while these markets are thrashing their way through their respective "Grizzly Bear" markets. The best a system can do is rest in cash while the markets churn. For this reason, this study is also an excellent 'stress-test' of timing and rotational systems, as it is difficult to conceive of any period where markets have provided a more intense challenge for investors.

It is important to note that, even during these periods, it was possible to find assets somewhere which were trending. For example, during the Great Depression, gold prices moved substantially higher over many years. During the Nikkei's long plunge from 1990 through 2000, U.S. stocks experienced one of their most intense bull markets. For this reason, a thoughtfully conceived asset class rotational system rarely encounters periods where no trends are to be found anywhere. Further, where such a period has occurred, such as during the years 2000 - 2002, it didn't last long, and losses were very well contained.

The 3 Grizzlies

The period from early 2000 through late 2002 saw U.S. markets peak following one of the richest parabolic runs in market history: the tech bubble. The collapse that followed in the Nasdaq stock market lasted almost 2 years, and took the index down 75% from its highest monthly close in April 2000. After bottoming in 2002, the market gained over 100% through late 2007 before experiencing a second collapse in 2008 which cut the value of the index in half. The market then experienced a very steep rally, which we are still enjoying today.

Chart 1. Nasdaq Composite 1998 - 2010
Source:, Butler|Philbrick & Associates

Japanese Stocks
The Nasdaq peak and collapse looks similar to the parabolic peak and collapse in the Japanese stock market which occurred in the late 1980s and throughout the 1990s. Chart 2. below closely aligns the Nikkei's final surge from 1988 through 1990, and its subsequent collapse through the year 2000, with the Nasdaq's peak and collapse. Note how closely the trajectory of the Nasdaq tracked the Nikkei's waterfall - the price series are not exactly the same, but they certainly 'rhyme'.

Note that the Nikkei return series was transformed to match dates with the Nasdaq series above, so the dates on Charts 2. and 3. are not accurate for these markets.

Chart 2. Nikkei Japanese stock market composite 1988 - 2000
Source: Reuters, Butler|Philbrick & Associates

The U.S. Great Depression
Last, but certainly not least, we tested against the granddaddy of all challenging markets - the 'Roaring Twenties' bull market and the ensuing Great Depression. In order to overlay this longer bear market with the Nasdaq and the Nikkei, we shortened the testing period to include just the very tail end of the market rally in 1929, and all of the ensuing Depression through 1942. You will note that this period resembles the other two 'Grizzly' bear markets, but only modestly.

During the Depression, stocks dropped almost 90% from peak to trough, though the maximum loss from the highest month-end close to the lowest month-end close was about 82%. The return series charted below captures total returns including dividends over this period (again, using the dates of the Nasdaq collapse for testing purposes). Interestingly, the Nikkei and U.S. stocks over the Depression years delivered the same annualized return: ~ negative 3.3% per year for 12 years (see CAGR% in charts 2. and 3.)

Chart 3. U.S. stock market during the Great Depression 1929 - 1942
Source: Shiller (2011), Butler|Philbrick & Associates

Buy and Hold with Rebalancing

These were clearly very challenging periods for investors, and God forbid that we ever experience a period where all markets behave this way at the same time. However, given the strange powers at work in markets today, and the amount of aggregate leverage (debt) in the system, we can't entirely rule out this possibility during our investment horizon. So how would an investor fare in an environment where all investable markets were to collapse at once? This study provides a proxy for just this situation.

A typical investor who believed in traditional risk management via diversification might have an equal amount invested in all three markets, and might rebalance between the markets every year to maintain his 'Strategic Asset Allocation'. While most investors might have some bonds as well, we could envision an aggressive investor with equal exposures to, for example, North American, European and Emerging Market stocks, where all markets collapsed en masses as in 2008.

Chart 4. assumes an investor chooses to allocate equally to all 3 of the markets above for the entire period shown, and that he rebalances his portfolio at the end of every year.

Chart 4. Buy and Hold with Rebalancing
Source: Shiller, Reuters,, Butler|Philbrick & Associates

You can see that diversification works - sort of. While the combined portfolio didn't gain in value over the period, neither did it lose any, with annualized returns of 0.06% per year. The portfolio did gain almost 60% in the first couple of years, and then lost over 50% from its peak value (see Max Total Equity DD in Chart 4.), but it ended up right back where it started by the end. This is much better than it would have done by holding the Depression market or the Nikkei alone.

Market Timing and Rotation

As with our other studies, we will apply three simple strategies to this basket of 3 investments which have the potential to substantially improve returns, and with much less risk of loss.

Moving Average Timing System

The first approach involves a simple moving average timing system. In this case, we own an equal amount of each index, rebalanced annually. However, if any of the 3 indices closes any month below its 10-month moving average, the system will sell that index and hold cash instead (at the U.S. dollar rates prevailing during the Nasdaq's run and collapse around the turn of the century). When an index closes back above its 10-month moving average, the system will re-purchase the index at the then prevailing price.

A simple moving average system improves risk-adjusted performance dramatically. With this system, we are able to achieve substantial positive returns over the period of 5.4% per year, which compares with returns of ~0% per year for the 'Buy and Hold' example. At the same time, risk is reduced by 50%, with the worst total peak-to-trough loss over the period of just 24%, versus 56% for the 'Buy and Hold' approach.

Chart 5. 3 Grizzlies with 10-Month Moving Average Timing System
Source: Source: Shiller (2011), Reuters,, Butler|Philbrick & Associates

Rotational Timing System with Cash Alternative

For a second cut, we applied our relative strength rotational strategy to signal when to hold cash, and when it makes sense to hold each stock index. Conceptually, this approach makes use of a simple momentum system where we own a stock index when it has outperformed cash over the prior year or so, and we hold cash otherwise. This decision is applied for each index independently, and capital is rebalanced at the end of every year.

In this way, stocks earn their way into the portfolio by demonstrating positive returns over any prior 6- to 12-month period. If they haven't earned their place in the portfolio by exhibiting strong prior returns, then statistically it makes better sense to hold cash.

We can see that by applying this technique against the three indices we were able to extract returns of over 8% per year, even while each of these markets independently peaked and crashed over a period of many years. Risk is further reduced as well: investors using this system only had to endure a 2 year period of modest losses, with a maximum peak-to-trough drop of less than 20%.

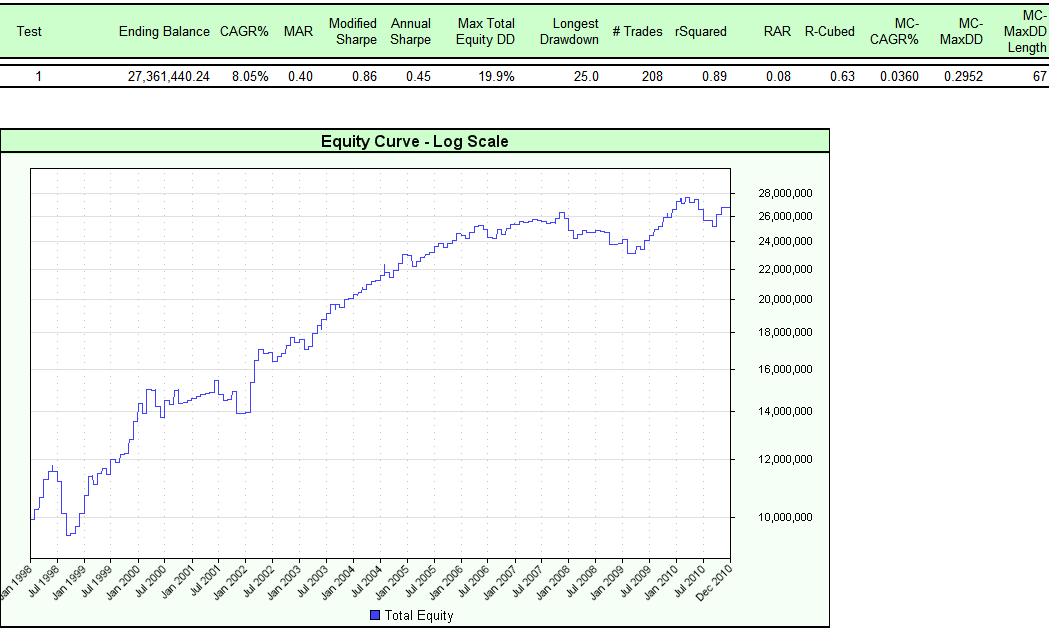

Chart 6. Grizzlies with Relative Strength Rotational System with Cash Alternative
Source: Source: Shiller (2011), Reuters,, Butler|Philbrick & Associates

Rotational Long/Short - The Goldilocks System

The 3 Grizzly Bears were periods where market prices dropped substantially over many years. Yet the above systems were only able to take advantage of periods where these markets went up; when markets were dropping, they sat in cash. It follows logically that if we were to allow a system to also take advantage of periods where markets were dropping, by selling short, that we might be able to extract even higher returns, especially against markets that are experiencing long declines.

Our rotational long/short system applies the same momentum ranking system as the rotational timing system described directly above. However, instead of moving to cash when index returns have been weak, our long/short system sells the index short in order to capture gains while the market is going down.

Amazingly, while the 3 Grizzlies are raging and tearing a big hole in most investors' portfolios, Goldilocks is able to coax the 3 bears into delivering returns of almost 13% per year! The risk in the system is only slightly higher than the risk to the rotational system with cash, with a maximum peak-to-trough loss of 24% versus 20%, and an investor is never below water on his investments for much longer than 2 years.

Chart 7. Goldilocks and the 3 Grizzlies

Source: Shiller (2011), Reuters, Butler|Philbrick & Associates


We endeavored to test some simple timing systems under very extreme conditions to see how they held up. It is important to test how systems behave under a variety of market conditions so that we can be as certain as possible that our systems will work no matter what the market holds in the future.

We chose the three most volatile, deepest bear markets of the past 140 years for our test case. While we can't be certain that these markets represent the most challenging conditions possible under which our systems might be forced to operate, we can say that these are some of the most challenging conditions investors have faced in history. While future markets will throw new and unexpected challenges at us, studies like this help to demonstrate how simple systems can adapt to almost any market environment to deliver more consistent and robust returns than 'Buy and Hold', and with substantially less risk.

Saturday, February 19, 2011

Taming the Japanese Bear: Nikkei Case Study

The last post explored the efficacy of two simple strategies -- a moving average approach, and a momentum strategy -- in timing the S&P500, and compared these systems to a buy and hold strategy over the period 1971 - 2010. This period included an 11 year secular sideways market from 1971 until the Volker bottom in 1982, followed by one of the biggest and longest bull markets in history, from 1982 through the peak of the technology bubble in 2000. Post 2000, US stocks languished for three years before embarking on another 4-year rally to new all-time highs, and then they crashed again, by more that 50% in 2008-9. Of course, since then we have rebounded 100% from the lows in the sharpest rally nice 1937. What a wild ride!

We saw that two simple timing strategies would have beat the markets in terms of absolute returns, but more importantly, the strategies would have achieved these returns with a fraction of the risk experienced from buy and hold.

This post will examine how the same timing systems would have performed if applied against Japanese stocks since 1984. What makes this study especially interesting is that the price of the Nikkei has lost 22% of it's value in absolute terms, which works out to annualized returns of -1% per year, over that 26 year period. At the same time US stocks are up 555%, or 7.75% per year.

The question is, can a timing system provide substantial positive returns even during a period where markets are substantially negative?

Chart 1. shows the price performance of the Nikkei from 1984 through the end of 2010. We can see that the market experienced a parabolic run to it's peak in 1989 before beginning a 20 year bear market which took prices down 80% through the end of 2008. Note the annualized returns of -0.94%, and maximum total loss from peak value of 80% over this period (see "CAGR%" and "Max Total Equity DD" respectively in the table above Chart 1.)

Chart 1
Source: Butler|Philbrick & Associates

Chart 2. shows the results of a test which applies a simple moving average to signal when to move to cash. As in the prior post, the system owns Japanese stocks when the index closes any month above the moving average, and holds cash otherwise. The results are substantially better than buy and hold, with positive returns of 4.7% per year, and a maximum loss of 43% from any peak, though the return series is a little choppy.

Chart 2
Source: Butler|Philbrick & Associates

For Chart 3. we applied a relative strength rotation strategy to signal when to hold cash versus the index. Conceptually, this system makes use of a simple momentum system where we own the index when it has outperformed cash over the prior year or so, and we hold cash other wise. In this way, stocks earn their way into the portfolio by demonstrating positive returns over any prior 6 to 12 month period. If they haven't earned their place in the portfolio by exhibiting strong prior returns, then it makes better sense to hold cash.

We can see that this technique delivered returns on the Nikkei of over 10% annually even while the index itself dropped 22% in value. Even better, this portfolio never dropped more than 19% from any peak value.

Chart 3
Source: Butler|Philbrick & Associates

Lastly, and for giggles, we ran the same system as in Chart 3 above, but we also allowed the system to short the index in periods where the market exhibited negative returns over the prior 6 to 12 months. In this way we are able to earn returns while the market trends higher, and to also earn returns when the market trends lower.

Chart 4
Source: Butler|Philbrick & Associates

By allowing the system to move into a short posture when markets are exhibiting negative price momentum, rather than just holding cash during these periods, we are able to extract over 16% annualized investment performance, while never dropping more than 23% from any peak portfolio value. And this during a period where the index dropped in value by 22%, from start to finish, and by 80% from peak to trough!

You may believe that markets only ever go up, despite having experienced no less than 2 major bear markets in the last 10 years, each of which erased half of total stock market value, and ignoring the evidence from Japan, which has experienced 20 years of declining prices. It is folly, however, to not at least acknowledge the possibility that market may not go up all the time. Accepting this possibility, doesn't it make sense to explore other approaches to investing which may better position your portfolio for whatever the future might hold?
